Backend IP Whitelist Plugin

A comprehensive security plugin for October CMS that restricts backend access to whitelisted IP addresses and ranges.

Developed by Key Agency — Expert October CMS & Laravel Development

Features

Core Security Features

• IP Address Whitelisting: Allow specific IP addresses to access the backend
• CIDR Range Support: Full support for IPv4 and IPv6 CIDR notation (e.g., 192.168.1.0/24)
• Custom Block Messages: Configurable error messages for blocked users
• Security Logging: Optional logging of blocked access attempts with detailed information

Advanced Protection

• Plugin State Awareness: Automatically disables restrictions when plugin is deactivated
• Localhost Protection: Always allows localhost access (127.0.0.1, ::1) by default for development safety
• Proxy & Load Balancer Support: Intelligent detection of real client IPs behind:
  • Cloudflare
  • Nginx proxy servers
  • Standard load balancers
  • Various proxy configurations

Emergency Access System

• Email-Based Recovery: Request access when locked out via discreet link
• Token-Based Security: Cryptographically secure, time-limited approval tokens
• Manual or Auto Approval: Choose between admin approval or automatic whitelisting
• Multi-Admin Support: Send notifications to multiple administrators
• Spam Prevention: Customizable button text and duplicate request blocking
• Automatic Cleanup: Expired tokens cleaned up daily

User Experience

• Easy Backend Interface: Intuitive settings panel with comprehensive help
• Real-time Feedback: Blocked users see their detected IP address
• Development Friendly: Safe defaults that won't lock developers out
• Instant Control: Disable plugin to immediately remove all restrictions
• Multilingual Support: Full internationalization with English, Dutch, German, and French translations
• Role-Based Access: Permission-based settings access for enhanced security

Installation

1. Place the plugin files in plugins/key/whitelist/
2. Run the migration command:

   php artisan october:migrate

3. Clear cache:

   php artisan cache:clear

Configuration

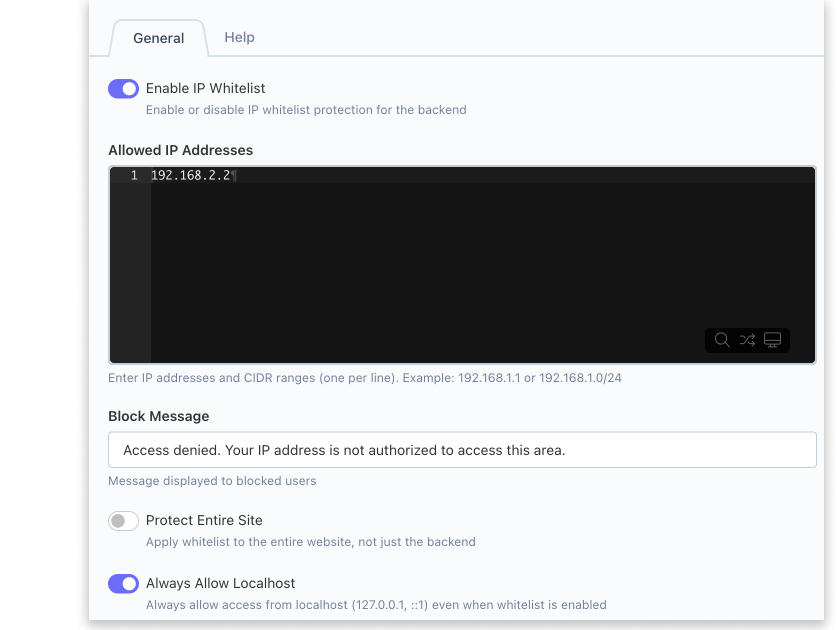

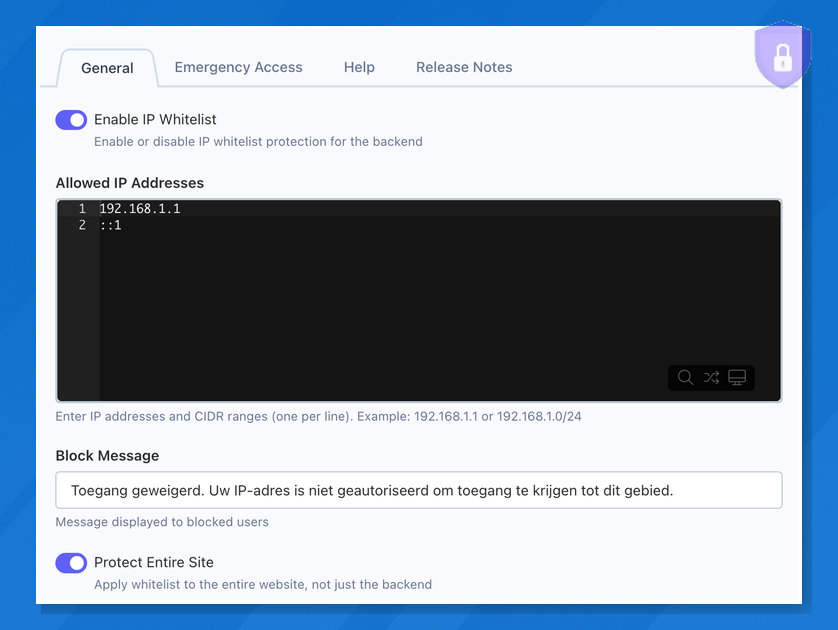

Navigate to Settings → Security → IP Whitelist in your backend:

General Settings

• Enable IP Whitelist: Master toggle for whitelist protection
• Allowed IP Addresses: Multi-line input for IP addresses and CIDR ranges
• Block Message: Custom message displayed to blocked users
• Protect Entire Site: Apply whitelist to entire website (not just backend)
• Always Allow Localhost: Safety feature for development environments
• Log Blocked Attempts: Enable security event logging

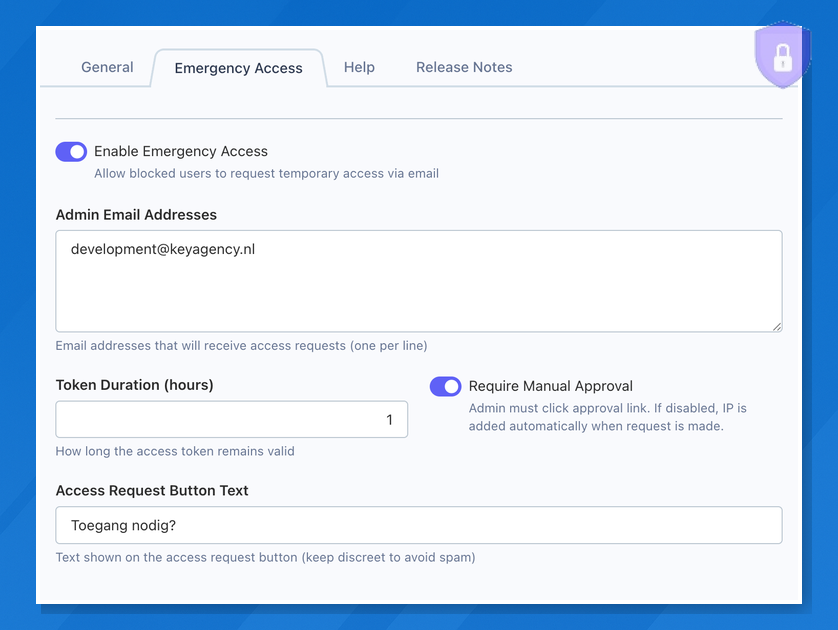

Emergency Access Settings

• Enable Emergency Access: Allow blocked users to request access via email
• Admin Email Addresses: Email addresses that receive access requests (one per line)
• Token Duration: How long access tokens remain valid (in hours)
• Require Manual Approval: Admin must click approval link (recommended for security)
• Access Request Button Text: Customize the button text (keep discreet to prevent spam)

Supported IP Formats

• Single IPv4: 192.168.1.100
• IPv4 CIDR Range: 192.168.1.0/24
• Single IPv6: 2001:db8::1
• IPv6 CIDR Range: 2001:db8::/32

Permissions & Access Control

Role-Based Permissions

The plugin includes built-in permission controls:

• Access Settings Permission: key.whitelist.access_settings
• Restrict who can view and modify IP whitelist settings
• Assign permissions via Settings → Administrators → Manage Roles

Safety & Security

Built-in Safety Features

• Development Safe: Localhost IPs allowed by default
• Plugin Control: Instant disable capability

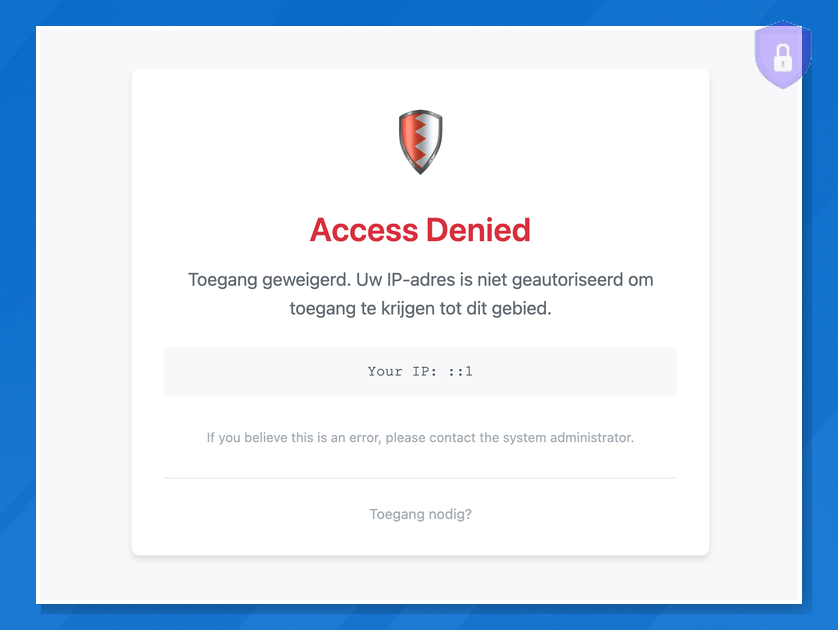

• Clear Error Messages: Users see their IP and helpful information
• Automatic Failsafe: If no IPs configured, access is allowed
• Permission Protected: Settings access controlled via role-based permissions

Proxy Detection

Automatically detects real client IPs from these headers (in priority order):

• HTTP_CF_CONNECTING_IP (Cloudflare)
• HTTP_X_REAL_IP (Nginx)
• HTTP_X_FORWARDED_FOR (Standard)
• HTTP_CLIENT_IP (Proxy)
• REMOTE_ADDR (Direct)

Troubleshooting

Locked Out?

Quick Recovery Options

1. Method 1 - Emergency Access (Recommended):

   • If emergency access is enabled, click the discreet "Need access?" link on the blocked page
   • Admin receives email with approval link
   • Click approval link to whitelist your IP

2. Method 2 - Plugin Disable:

   • Disable plugin in Settings → System → Updates → Manage plugins

3. Method 3 - File System:

   • Temporarily rename the plugin folder

4. Method 4 - Cache Clear:

   • Run: php artisan cache:clear

Emergency Access Not Working?

• Verify emergency access is enabled in settings
• Check admin email addresses are configured
• Look in spam folder for approval emails
• Verify October CMS mail configuration is working
• Check database for pending requests: key_whitelist_emergency_access table

Testing Checklist

1. Add your current IP to whitelist
2. Save settings
3. Enable whitelist
4. Test from different IP/device
5. Verify localhost still works

Technical Details

File Structure

plugins/key/whitelist/
├── Plugin.php                                # Main plugin registration & routes
├── middleware/WhitelistMiddleware.php        # IP validation & emergency access check
├── controllers/EmergencyAccess.php           # Emergency access request handler
├── models/
│   ├── Settings.php                          # Settings with IP parsing & validation
│   └── EmergencyAccess.php                   # Emergency access request model
├── console/CleanupExpiredTokens.php          # Artisan command for token cleanup
├── lang/                                     # Internationalization files
│   ├── en/lang.php                           # English translations
│   ├── nl/lang.php                           # Dutch translations
│   ├── de/lang.php                           # German translations
│   └── fr/lang.php                           # French translations
├── views/
│   ├── blocked.htm                           # Professional error page
│   └── mail/
│       ├── emergency_access_request.htm      # HTML email template
│       └── emergency_access_request.txt      # Plain text email template
├── updates/
│   ├── version.yaml                          # Version tracking
│   └── create_emergency_access_table.php     # Emergency access database migration
├── EMERGENCY_ACCESS.md                       # Complete emergency access documentation
└── README.md                                 # This file

Internationalization

The plugin supports multiple languages:

• English (en) — Default
• Dutch (nl) — Nederlands
• German (de) — Deutsch
• French (fr) — Français

All interface text, field labels, and help text are fully translatable.

Console Commands

# Clean up expired emergency access tokens (runs daily at 3am automatically)
php artisan whitelist:cleanup-tokens

Routes

The plugin registers the following public routes for emergency access:

• GET /whitelist/emergency-access/request — Create access request
• GET /whitelist/emergency-access/approve/{token} — Approve request via token

Requirements

• October CMS 3.x
• PHP 8.2+
• Laravel 9.x
• Configured mail settings (for emergency access emails)

Additional Documentation

• EMERGENCY_ACCESS.md — Complete emergency access feature documentation
• CLAUDE.md — Developer guidance for Claude Code assistant
